70-100pcs/Min Toothpaste Cartoning Machine Tube Horizontal Cartoner Machine
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
---|---|---|---|
Delivery Time : | 50 work days | Payment Terms : | T/T |
Supply Ability : | 30 set/ two months |
Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
---|---|---|---|
Certification: | CE | Model Number: | XQ-ZH180 |
Detail Information |
|||
Name: | Capsule Board Cartoner Packaging Machine | Feeding Mode: | Automatic |
---|---|---|---|
Available Product: | Capsule Board | Sealing Type: | Insert Flap |
Speed: | 180-200pcs/min | Power: | 7.6kw |
Voltage: | 380v | Available Carton Size: | (78-170)*(33-100)*(15-90)mm |
Optional: | Leaflet Device | Application: | Oral Liquid, Penicillin Bottle |
High Light: | 180 pcs min Cartoner Packaging Machine,200 pcs min Cartoner Packaging Machine,380v capsule filling machine |
Product Description

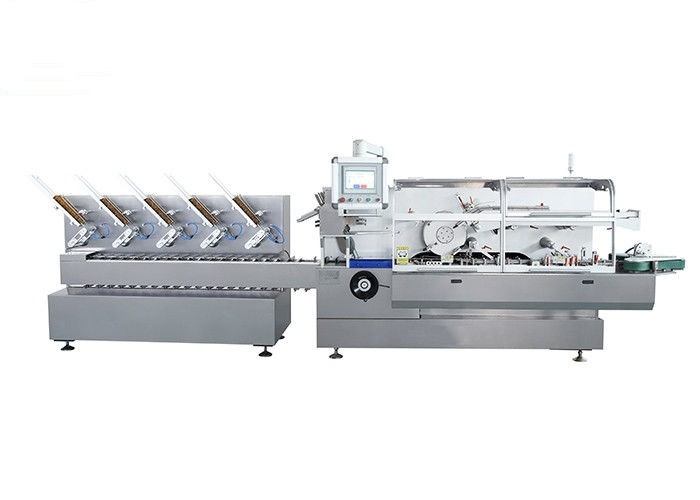

Automatic Capsule Board Cartoner Packaging Machine with Automatic Feeding Device
Cartoning Machine Introduction
The automatic continuous cartoning machine manufactured by SICIAUTO picks a single piece from a stack of folded cartons. The machine will fill it with a product or a number of products horizontally through an end that is open, and then close it by tucking an end flap of the carton or putting on glue or adhesive. Multiple arm vacuum pickup ensures continuous & smooth operation with minimal human interaction. It has very fast speed, it’s more suitable for pharmaceutical factory which has high requirements with speed, it can reach about 180-200pcs/min.
Technical Parameter
Model | Available Box Size | Speed | Power |
XQ-ZH180 |
(78-170)*(33-100)*(15-90)mm (can be customized) |
180-200pcs/min | 7.6kw |
Voltage | Working Pressure | Air Consumption | Machine dimension |
380v 50Hz | 0.6-0.8MPa | 0.6-1m³/h | 4040 (mm) × 1450 (mm) × 1800 (mm) |
Machine Principle
Cartoning Machine Features
Model:XQ-ZH180 Automatic Capsule Board Cartoner Packaging Machine with Automatic Feeding Device
1 | Follow GMP balcony type structure design. |
2 | Follow type double silo blanking, servo motor control, counting, blanking accurate and fast. |
3 | Unique three-star wheel continuous suction box with pre-opening function. |
4 | Central type carton size adjustment design, with digital auxiliary display. |
5 | Lengthened cartons feeding conveyor belt, reduce cartons loading times |
6 | Adjust on machine when change size, don't need to change mould. |
