Oral Liquid Cartoner Packaging Machine Blister Board Continuous Bottle Cartoner

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 50 work days Payment Terms : T/T
Supply Ability : 30 set/ two months
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-ZH180

Detail Information

Name: Continuous Cartoning Machine Feeding Mode: Automatic
Available Product: Tablet Sealing Type: Tuck In
Speed: 180pcs/min Power: 7.6kw
Voltage: 380v Available Carton Size: (78-170)*(33-100)*(15-90)mm
Optional: Leaflet Device, Hot Glue Sprayer Application: Blister Board, Oral Liquid, Penicillin Bottle
High Light:

blister board Cartoner Packaging Machine

,

oral liquid Cartoner Packaging Machine

,

Continuous bottle cartoner

Product Description

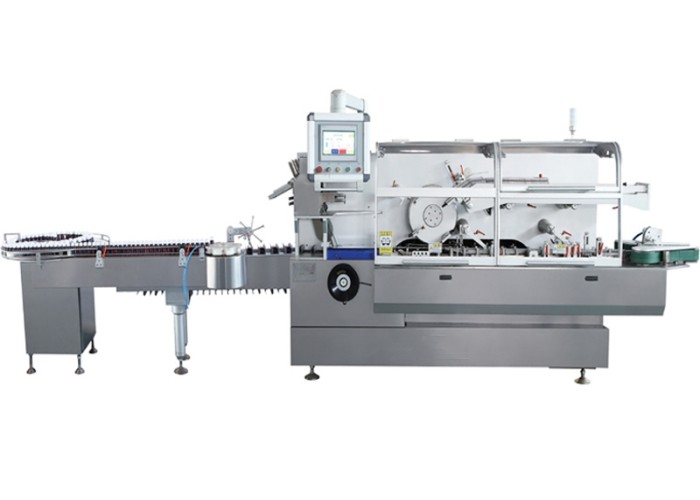

Continuous Tablet Bottle Cartoner Packaging Machine Cartoning Machine



Cartoning Machine Introduction



This continuous motion cartoner is designed to easily integrate with various filling systems, such as combination weighers and augers. Once loaded, our vertical cartoning machines secure cartons with a servo flap tucker and electric glue guns for sift-proof, end-flap gluing.



Horizontal Continuous Cartoning Machine are high speed machines, with entirely automated functions. Multiple arm vacuum pickup ensures continuous & smooth operation with minimal human interaction. It has very fast speed, it’s more suitable for pharmaceutical factory which has high requirements with speed, it can reach about 180-200pcs/min.



Technical Parameter



Model XQ-ZH180
Box Quality Requirement 300-350g/m²
Dimension Range (78-170)*(33-100)*(15-90)mm (can be customized)
Max speed 180pcs / min
Total Power 7.6kw
Working Voltage 380V 50Hz
Compressed Air Working Pressure 0.6-0.8Mpa
Air Consumption 0.6-1m³/h
Machine Weight 2000kg
Machine Dimensions 4040 (mm) × 1450 (mm) × 1800 (mm)



Machine Principle

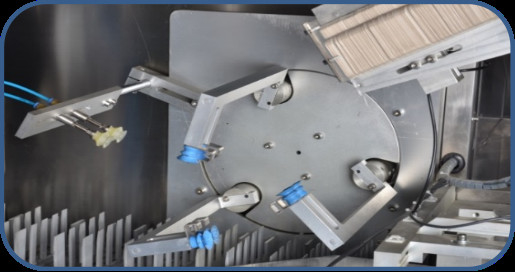

Oral Liquid Cartoner Packaging Machine Blister Board Continuous Bottle Cartoner 0



Cartoning Machine Features



Model:XQ-ZH180 Continuous Bilster Board Cartoner Packaging Machine Cartoning Machine

  • 1. Follow GMP balcony type structure design.
  • 2. Follow type double silo blanking, servo motor control, counting, blanking accurate and fast.
  • 3. Unique three-star wheel continuous suction box with pre-opening function.
  • 4. Central type carton size adjustment design, with digital auxiliary display.
  • 5. Lengthened cartons feeding conveyor belt, reduce cartons loading times
  • 6. Adjust on machine when change size, don't need to change mould.
  • 7. Automatic detection and overload safety protection system, manual or carton short of material alarm, stop and fault display



Samples





Oral Liquid Cartoner Packaging Machine Blister Board Continuous Bottle Cartoner 1
