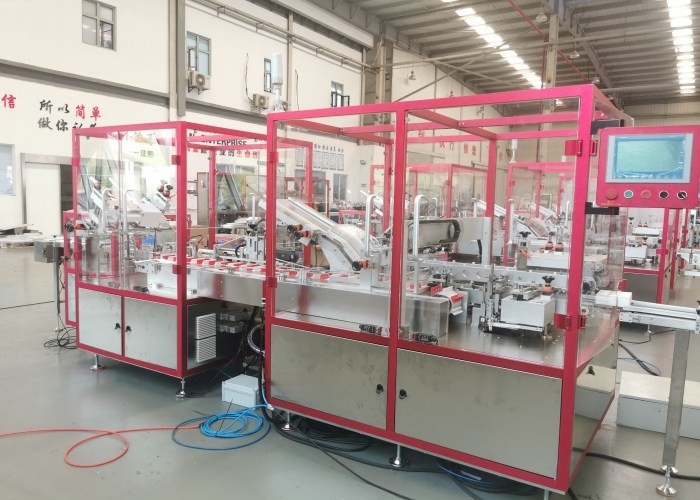

30-65 Pcs/Min Cartoner Packaging Machine , Emulsion Automatic Cartoning Machine

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 50 work days Payment Terms : T/T
Supply Ability : 30 set/ two months
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-TZ-120

Detail Information

Name: Cartoning Machine With Liner Feeding Mode: Automatic
Available Product: Tube, Bottle Sealing Type: Insert Flap
Speed: 30-65pcs/min Power: 5kw
Voltage: 380v Available Carton Size: 130×35×30mm-200×80×70mm
Optional: Ink-jet Printer, Opening Door Sensor Application: Lotion, Toothpaste, Disinfectant
High Light:

30 pcs min Cartoner Packaging Machine

,

65 pcs min Cartoner Packaging Machine

,

emulsion automatic cartoning machine

Product Description

Automatic Lined Cartoning Machine Cartoner Packaging Machine for Emulsion 30-65pcs/min



Product Introduction of Cartoning Machine



A cartoning system is actually a cartoner or cartoning machine, which is common equipment in the packaging industry. It erects, shapes, and seals the carton blanks into packaged cartons. Of course, consumer goods loading is prior to carton sealing.



XQ-TZ-120 lined cartoning machine is a new product developed by our company, with High production efficiency, covering small area, light weight, and wide application range. It can be work as a stand-alone machine or a on-line machine, such as the machine can be connected with filling machine, and overwrapping machine as a packing line to get a best packaging effect.



It can meet the national drug production quality management standard —— "GMP" standard



Technical Parameter

Model XQ-TZ-120
Main motor power 5.0KW
Production capacity 30-65 Box / minute (depend on carton material and product size)
Overall dimensions 4100×1400×1680mm (length×width× height)
Machine weight About 2,000 K g
Available carton size

Max. 200×80×70mm (length×width × height)

Min.130×35×30mm (length×width×height)

(the minimum and maximum values cannot be taken simultaneously)



Machine Principle



30-65 Pcs/Min Cartoner Packaging Machine , Emulsion Automatic Cartoning Machine 0



Cartoning Machine Features

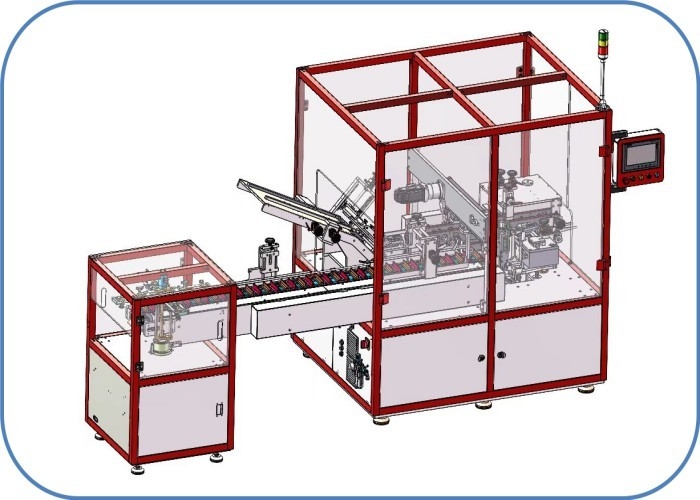

Model:XQ-TZ-120 Horizontal Automatic Lined Cartoning Machine Cartoner Packaging Machine for Emulsion

  • Patent 1: The whole machine transmission principle and appearance patent;
  • Patent 2: The non-destructive box-opening mechanism opens the product carton using a multi-angle active mechanical action to open the box and send the opened carton to the transporting station. The original structure is a passive carton opening, and the surface of the carton is scratched;
  • Patent 3: The non-damaged box transport mechanism adopts the mechanical cam linkage transport mode, the contact surface with the carton is made of polyurethane material synchronous belt, and the active synchronous transport box can effectively protect the carton surface without scratches;
  • Patent 4: Folding, closing box linkage mechanism, the mechanism adopts mechanical cam linkage transmission mode, the whole structure is compact and easy to adjust
  • Patent 5: The push-bag-in-box mechanism adopts a mechanical linkage push-in-box mechanism, and the position of the push-bag can be adjusted accurately; the adjustable position of the whole machine is equipped with a digital display
  • Patent 6: Pushing the bag into the box mechanism, using a mechanical linkage pushing the bag into the box mechanism, the position of the bag is accurately adjustable; the adjustable position of the whole machine is equipped with a digital display;



Samples

30-65 Pcs/Min Cartoner Packaging Machine , Emulsion Automatic Cartoning Machine 1



Successful Case

30-65 Pcs/Min Cartoner Packaging Machine , Emulsion Automatic Cartoning Machine 2
